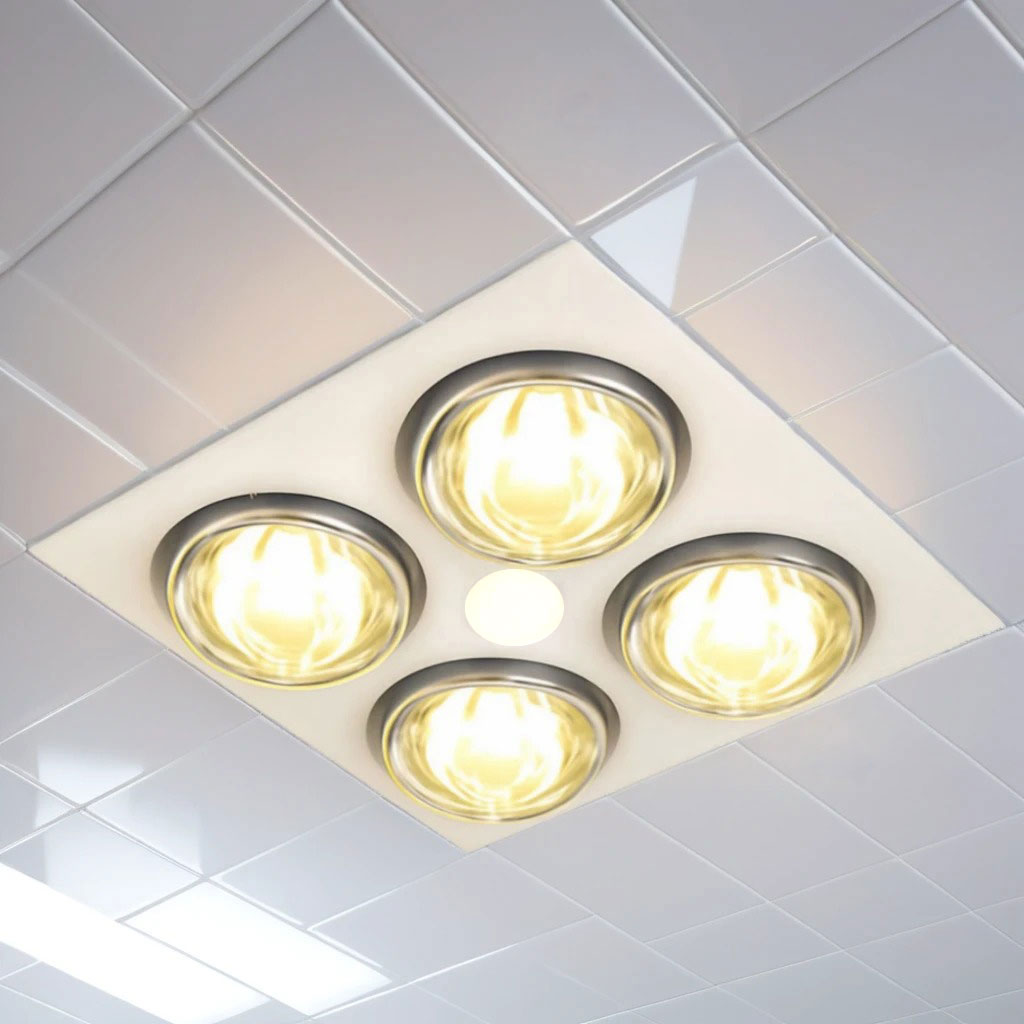

This heat fan light unit is a powerful and efficient 3-in-1 solution designed to provide optimal illumination, heating, and ventilation for medium to large bathrooms. Featuring a sleek, low-profile facia design, this unit seamlessly integrates into modern interiors while delivering exceptional performance. It includes a thermostat switch that activates the exhaust fan automatically if the internal temperature exceeds 80°C, ensuring safe and efficient operation. With an IPX4 rating, this unit is resistant to moisture and splashing water, making it highly suitable for bathroom environments.
Equipped with an SMD LED light source, this unit produces 850 lumens of cool white (4200K) illumination with a CRI of over 82, providing clear, natural lighting. The light component has a 100° beam angle and a lifespan of 30,000 hours, ensuring longevity and consistent performance. The heating function is powered by four R125 heat globes with E27 bases, each capable of delivering up to 275W of warmth, creating a comfortable environment during colder months. The fixed LED light and heat globes are included, ensuring hassle-free installation and immediate functionality.
The ventilation system features a robust ball-bearing motor that delivers an airflow rate of 300 m³/hr, efficiently extracting excess humidity and maintaining air quality. With a 125mm diameter side duct outlet and a built-in draft stopper, this unit prevents unwanted airflow back into the bathroom, enhancing efficiency. Operating at a noise level of ≤45dB, it ensures quiet yet effective ventilation. The 75W motor is designed for durability and sustained performance, making this unit a reliable long-term investment.
Designed for convenient installation, this heat fan light unit has a compact cutout size of 300mm x 310mm, allowing for seamless integration into most bathroom ceilings. The unit operates on a standard 240V power supply and includes a 3-gang wall switch for independent control of each function. A complete installation kit is provided, including 1.5m of flexible aluminium ducting, an exterior grille, and secure clamps. Backed by a three-year warranty, this unit guarantees reliability and superior performance, making it an essential addition to any well-ventilated, comfortable bathroom space.
TYPE: Heat Fan Light Unit (3 in 1)
COLOUR: White
WARRANTY: 3 Years
IP RATING: IPX4
SWITCH: Thermostat switch for fan
LUMENS: 850lm
COLOUR TEMP: 4200K (Cool White)
GLOBE TYPE: Light is SMD LED (fixed in fitting), Heat is E27
NUMBER OF GLOBES: 4 (R125 Heat Globes)
GLOBE(S) INCLUDED: Yes
CRI: >82
BEAM ANGLE: 100°
LIFE SPAN: 30,000 hours
DIMMABLE: No
AIRFLOW: 300 m³/hr
EXHAUST: 125mm diameter side duct outlet with draft stopper
MOTOR: Powerful ball bearing motor
WIDTH: 370mm
DEPTH: 370mm
CUTOUT: 300mm x 310mm
WATTAGE: 8W for Light, 275W (max per globe) for Heat
MOTOR WATTS: 75W
VOLTAGE: 240V
NOISE: ≤ 45dB
INCLUDES: 3 gang wall switch, 1.5m flexible aluminium ducting and exterior grille and clamps
DATA SHEET: available upon request
